AT86RF230 Datasheet - ATMEL Corporation

Transceiver

AT86RF230 Features

* Fully Integrated 2.4 GHz-band Transceiver

* -101 dBm Receiver Sensitivity

* Low Current Consumption (Typical Values)

* SLEEP = 0.1 µA

* TRX_OFF = 1.7 mA

* RX_ON = 16 mA

* BUSY_TX = 17 mA (max. PTX)

* Power Supply Range 1.8V

AT86RF230 General Description

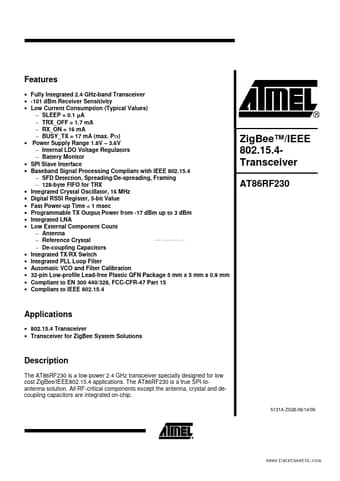

The AT86RF230 is a low-power 2.4 GHz transceiver specially designed for low cost ZigBee/IEEE802.15.4 applications. The AT86RF230 is a true SPI-toantenna solution. All RF-critical components except the antenna, crystal and decoupling capacitors are integrated on-chip. 5131A-ZIGB-06/14/06 Table of co.
