AT86RF233 Datasheet - ATMEL Corporation

AT86RF233 2.4GHz Transceiver

8 1.2 Analog and RF Pins 9 1.2.1 Supply and Ground Pins 9 1.2.2 RF Pins 9 1.2.3 Crystal Oscillator Pins 10 1.2.4 Analog Pin Summary 10 1.3 Digital Pins 11 1.3.1 Driver Strength Settings 11 1.3.2 Pull-up and Pull-down Configuration 11 2 Disclaimer 12 3 Overview 12 4 General Circuit Description.

AT86RF233 Features

* High Performance RF-CMOS 2.4GHz radio transceiver targeted for IEEE® 802.15.4, ZigBee®, RF4CE, 6LoWPAN, and ISM applications

* Industry leading link budget:

* Receiver sensitivity -101dBm

* Programmable TX output power from -17dBm up to +4dBm

* Ultra-lo

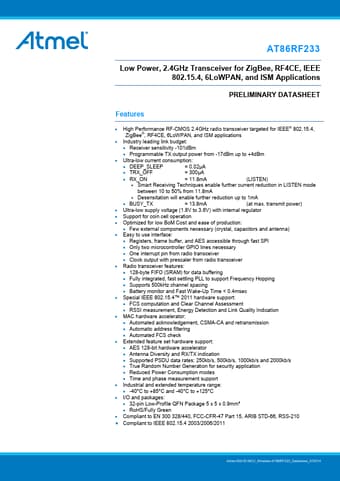

AT86RF233 Datasheet (4.25 MB)

AT86RF233 Datasheet Preview — Preview of AT86RF233 PDF

Datasheet Details

Part number:

AT86RF233

Manufacturer:

ATMEL Corporation

File Size:

4.25 MB

Description:

2.4ghz transceiver.
