ATA5021 - Digital Window Watchdog Timer

Product Overview

ATMEL

📥 Download Datasheet

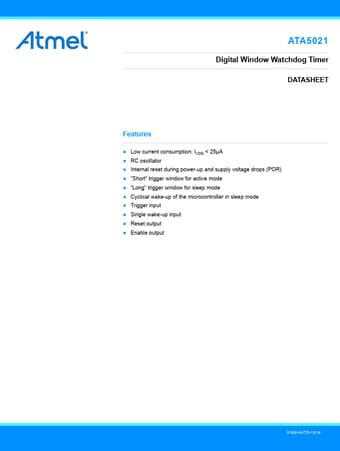

ATA5021 Digital Window Watchdog Timer by ATMEL - Datasheet Preview — Datasheet preview – ATA5021

Datasheet Details

Part number	ATA5021
Manufacturer	ATMEL
File Size	570.43 KB
Description	Digital Window Watchdog Timer
Datasheet	ATA5021 Datasheet
Additional preview pages of the ATA5021 datasheet.

Product details

Description

The digital window watchdog timer, Atmel® ATA5021, is designed in Atmel’s state-of-the-art 0.8µm SOI technology SMART-I.S.™1.

Features

Low current consumption: IVDD < 25µA.
RC oscillator.
Internal reset during power-up and supply voltage drops (POR).
“Short” trigger window for active mode.
“Long” trigger window for sleep mode.
Cyclical wake-up of the microcontroller in sleep mode.
Trigger input.
Single wake-up input.
Reset output.
Enable output 9145I-AUTO-10/14 1.
