TH7804ACC - Linear Charged Couple Device (CCD) Image Sensor 1024 Pixels

ATMEL

📥 Download Datasheet

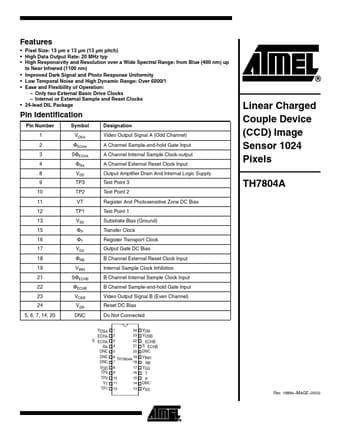

TH7804ACC Datasheet Preview — Preview of TH7804ACC PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TH7804ACC
Manufacturer: ATMEL
File Size: 172.53 KB
Datasheet: TH7804ACC_ATMELCorporation.pdf
Description: Linear Charged Couple Device (CCD) Image Sensor 1024 Pixels

TH7804ACC Product details

Features

Pixel Size: 13 µm x 13 µm (13 µm pitch).
High Data Output Rate: 20 MHz typ.
High Responsivity and Resolution over a Wide Spectral Range: from Blue (400 nm) up to Near Infrared (1100 nm).
Improved Dark Signal and Photo Response Uniformity.
Low Temporal Noise and High Dynamic Range: Over 6000/1.
Ease and Flexibility of Operation:.
Only two External Basic Drive Clocks.
Internal or External Sample and Reset Clocks.
24.
