TH7813A, 50 MHz 1024/2048 Linear CCDs

datasheet Preview Page 1 from Datasheet4u.com

TH7813A_ATMELCorporation.pdf

TH7813A Datasheet Preview — Preview of TH7813A PDF

Datasheet Details

Part number:

TH7813A

Manufacturer:

ATMEL

File Size:

157.15 KB

Description:

50 MHz 1024/2048 Linear CCDs

Features

* Data Rate up to 50 MHz (2 Outputs at 25 MHz Each)
* Pixel Size: 10 µm x 10 µm (10 µm Pitch)
* 300 to 1100 nm Spectral Range
* High Sensitivity and Lag-free Photodiodes
* Very Low Noise (30 pJ/cm2 Noise Equivalent Illumination)
* Antiblooming

Applications

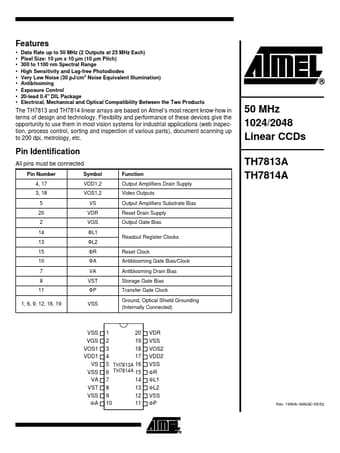

* (web inspection, process control, sorting and inspection of various parts), document scanning up to 200 dpi, metrology, etc. 50 MHz 1024/2048 Linear CCDs TH7813A TH7814A Pin Identification All pins must be connected Pin Number 4, 17 3, 18 5 20 2 14 13 15 10 7 8 11 1, 6, 9, 12, 16, 19 Symbol VDD1,2
