TH7834C Datasheet, Sensor, ATMEL

TH7834C Features

  • Sensor
  • 6.5 µm x 6.5 µm Photodiode Pixel, at 6.5 µm Pitch
  • 2 x 2 Outputs
  • High Output Data Rate: 4 x 5 MHz
  • High Dynamic Range: 10000: 1
  • Antibloom

PDF File Details

Part number:

TH7834C

Manufacturer:

ATMEL

File Size:

98.21kb

Download:

📄 Datasheet

Description:

Very high resolution linear ccd image sensor. Atmel’s TH7834C is a linear sensor based on charge-coupled device (CCD) technology. It can be used in a wide range of applications th

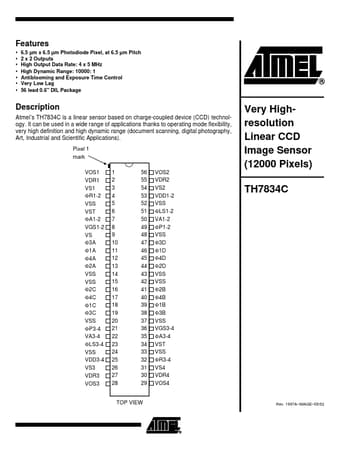

Datasheet Preview: TH7834C 📥 Download PDF (98.21kb)
Page 2 of TH7834C Page 3 of TH7834C

TH7834C Application

  • Applications thanks to operating mode flexibility, very high definition and high dynamic range (document scanning, digital photography, Art, Industr
