S7136SF

Bipolar Linear Integrated Circuit

S7136SF Features

* Current Consumption is Low (ICCL=300 ㎂ Typ. ICCH=30 ㎂ Typ.)

* Resetting Output Minimum Guarantee Voltage is Low (0.8V Typ.)

* Hysteresis Voltage is Provided (50 ㎷ Typ.) Ordering Information Type NO. S7136SF Marking 736 Package Code SOT-23F Outline Dimensions unit : mm

S7136SF General Description



* As Control Circuit of Battery-Backed Memory

* As Measure Against Erroneous Operations at Power On-Off

* As Resetting Function for the CPU-Mounted Equipment

*- PC, Printer, VTR, Fax, C-TV etc.

* As Measure Against System Runaway at Instantaneous Break of Powe.

S7136SF Datasheet (204.29 KB)

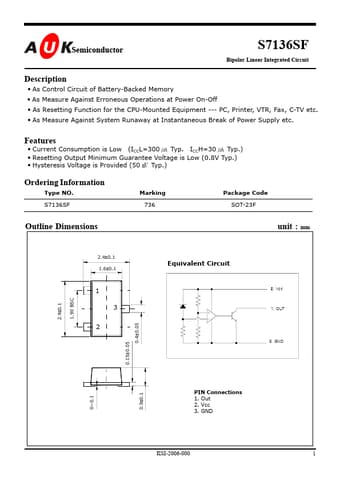

Preview of S7136SF PDF

Datasheet Details

Part number:

S7136SF

Manufacturer:

AUK corp

File Size:

204.29 KB

Description:

Bipolar linear integrated circuit.
