S7131SF Datasheet - AUK corp

S7131SF - Bipolar Linear Integrated Circuit

* As Control Circuit of Battery-Backed Memory * As Measure Against Erroneous Operations at Power On-Off * As Resetting Function for the CPU-Mounted Equipment *- PC, Printer, VTR, Fax, C-TV etc.

* As Measure Against System Runaway at Instantaneous Break of Powe

S7131SF Features

* Current Consumption is Low (ICCL=300 ㎂ Typ. ICCH=30 ㎂ Typ.)

* Resetting Output Minimum Guarantee Voltage is Low (0.8V Typ.)

* Hysteresis Voltage is Provided (50 ㎷ Typ.) Ordering Information Type NO. S7131SF Marking 731 Package Code SOT-23F Outline Dimensions unit : mm

S7131SF_AUKcorp.pdf

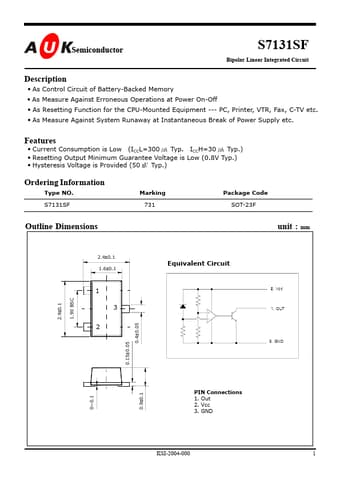

Preview of S7131SF PDF
S7131SF Datasheet Preview Page 2 S7131SF Datasheet Preview Page 3

Datasheet Details

Part number:

S7131SF

Manufacturer:

AUK corp

File Size:

204.84 KB

Description:

Bipolar linear integrated circuit.
