S7136-10, S7136 Datasheet - Hamamatsu

S7136-10 Light modulation photo IC

Light modulation photo IC S4282-51, S6809, S6846, S6986, S7136/-10, S10053 Fewer detection errors even under disturbance background light These light modulation photo ICs were developed for optical synchronous detection under disturbance background light. A photodiode, preamplifier, comparator, oscillator, LED driver and signal processing circuit, etc. are all integrated on a monolithic photo IC chip. Optical synchronous type photoreflectors and photointerrupters, which less susceptible to di.

S7136-10 Features

* Large allowable background light level S4282-51, S6986, S10053: 10000 lx typ. S6809, S6846, S7136/-10 : 3000 lx typ. Minimum detection level S4282-51, S6986, S10053: 0.7 μW/mm2 typ. S6809, S6

S7136-Hamamatsu.pdf

This datasheet PDF includes multiple part numbers: S7136-10, S7136. Please refer to the document for exact specifications by model.

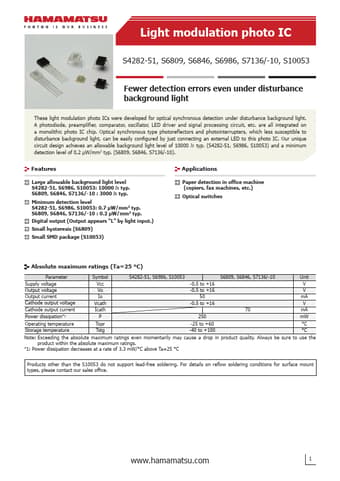

S7136-10 Datasheet Preview Page 2 S7136-10 Datasheet Preview Page 3

Datasheet Details

Part number:

S7136-10, S7136

Manufacturer:

Hamamatsu

File Size:

615.08 KB

Description:

Light modulation photo ic.

Note:

This datasheet PDF includes multiple part numbers: S7136-10, S7136.
Please refer to the document for exact specifications by model.
