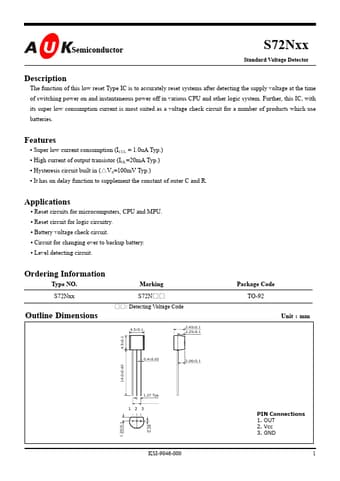

S72N42 Datasheet, Detector, AUK corp

S72N42 Features

• Detector
• Super low current consumption (ICCL = 1.0uA Typ.)
• High current of output transistor (IOL=20mA Typ.)
• Hysteresis circuit built in (△VS=100mV Typ.)

PDF File Details

Part number:

S72N42

Manufacturer:

AUK corp

File Size:

348.98kb

Download:

📄 Datasheet

Description:

Standard voltage detector. The function of this low reset Type IC is to accurately reset systems after detecting the supply voltage at the time of switching pow

S72N42 Application

• Applications
• Reset circuits for microcomputers, CPU and MPU.
• Reset circuit for logic circuitry.
• Battery voltage check
