S72N45 Standard Voltage Detector

S72N45 Description

7 Semiconductor S72Nxx Standard Voltage Detector .
The function of this low reset Type IC is to accurately reset systems after detecting the supply voltage at the time of switching power on and instant.

S72N45 Features

* Super low current consumption (ICCL = 1.0uA Typ. )
* High current of output transistor (IOL=20mA Typ. )
* Hysteresis circuit built in (△VS=100mV Typ. )

S72N45 Applications

* Reset circuits for microcomputers, CPU and MPU.
* Reset circuit for logic circuitry.
* Battery voltage check circuit.
* Circuit for changing over to backup battery.
* Level detecting circuit. Ordering Information Type NO. S72Nxx Marking S72N

📥 Download Datasheet

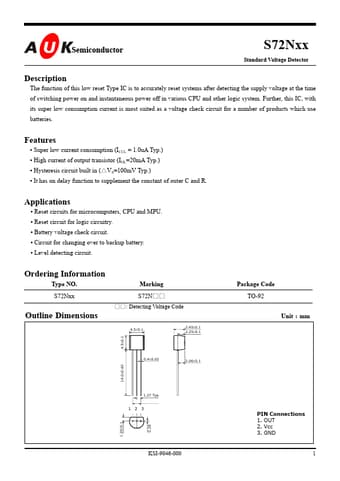

Preview of S72N45 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S72N45
Manufacturer
AUK corp
File Size
348.98 KB
Datasheet
S72N45_AUKcorp.pdf
Description
Standard Voltage Detector
