S72N45SF - Standard Voltage Detector

AUK corp

The S72N45SF by AUK corp is a Standard Voltage Detector. Below is the official datasheet preview.

📥 Download Datasheet

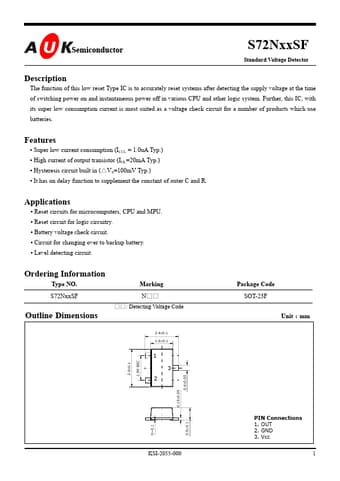

S72N45SF Standard Voltage Detector by AUK corp - Datasheet Preview — Official preview page of the **S72N45SF** Standard Voltage Detector datasheet (AUK corp).

Datasheet Details

Part number	S72N45SF
Manufacturer	AUK corp
File Size	342.20 KB
Description	Standard Voltage Detector
Datasheet	S72N45SF_AUKcorp.pdf
Additional preview pages of the S72N45SF datasheet.

S72N45SF Product details

Description

The function of this low reset Type IC is to accurately reset systems after detecting the supply voltage at the time of switching power on and instantaneous power off in various CPU and other logic system.

Features

Super low current consumption (ICCL = 1.0uA Typ. ).
High current of output transistor (IOL=20mA Typ. ).
Hysteresis circuit built in (△VS=100mV Typ. ).
It has on delay function to supplement the constant of outer C and R.
