Datasheet Details
| Part number | DN500F |
|---|---|
| Manufacturer | AUK |
| File Size | 47.39 KB |
| Description | NPN Silicon Transistor (Extremely low collector-to-emitter saturation voltage) |
| Datasheet |
 DN500F_AUK.pdf
|
| Part number | DN500F |
|---|---|
| Manufacturer | AUK |
| File Size | 47.39 KB |
| Description | NPN Silicon Transistor (Extremely low collector-to-emitter saturation voltage) |
| Datasheet |
DN500F_AUK.pdf
|

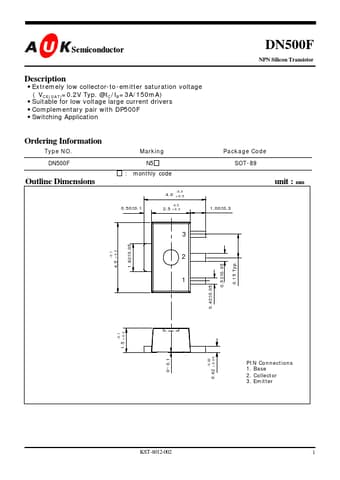

Extremely low collector-to-emitter saturation voltage ( VC E ( S A T )=0.2V Typ. Suitable for low voltage large current drivers Complementary pair with DP500F Switching Application Ordering Information Type NO.DN500F : Marking N5 monthly code Package Code SOT-89 Outline Dimensions 4.0 0.50±0.1 -0.3 +0.5 unit : mm 2.5 +0.2 -0.3 1.00±0.3 3 1.82±0.05 -0.1 +0.2 2 1 0.42±0.05 0.52±0.05 0.15 Typ.1.5 -0.1 +0.2 4.5 0.42 +0.04 0~0.1
