DN5567 Datasheet - Siliconix

DN5567 dual n-channel JFET

matched dual n-channel JFETs designed for Dual FEY H Siliconix Performance Curves NCB-D See Section 4 BENEFITS High Density Matched Switch Resistance Constant rOS(on) with Signal ABSOLUTE MAXIMUM RATINGS (2S0C) Gate-Gate Voltage ±80 V Gate-Drain or Gate-Source Voltage -40 V Gate Current 50 mA Device Dissipation (Each Side), TA = 25°C (Derate 2.2 mW;oC) 325 mW Total Device Dissipation, TA = 25°C (Derate 3.3 mW;oC) : 650 mW Storage Temperature Range -6.

DN5567 Datasheet (60.23 KB)

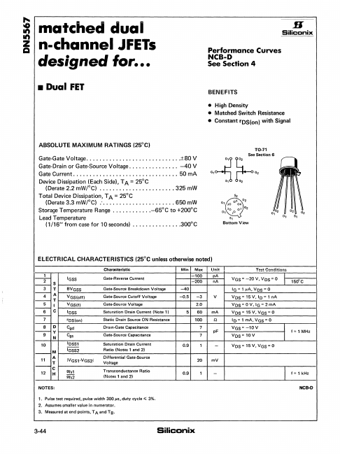

Preview of DN5567 PDF

Datasheet Details

Part number:

DN5567

Manufacturer:

Siliconix

File Size:

60.23 KB

Description:

Dual n-channel jfet.
