DN5566 dual n-channel JFET

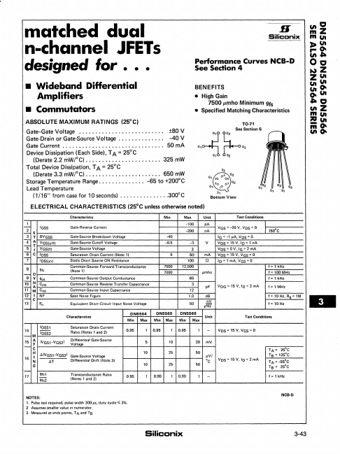

matched dual n-channel JFETs H Siliconix designed for Performance Curves NCB-D See Sedion 4 Wideband Differential Amplifiers Commutators ABSOLUTE MAXIMUM RATINGS (25°C) Gate-Gate Voltage ±80V Gate-Drain or Gate-Source Voltage .. -40 V Gate Current . . . . . .. . .. 50 rnA Device Dissipation (Each Side), TA .

DN5564-Siliconix.pdf

DN5566 Datasheet Preview — This datasheet PDF includes multiple part numbers: DN5566, DN5564. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DN5566, DN5564

Manufacturer:

Siliconix

File Size:

77.48 KB

Description:

Dual n-channel jfet.

Note:

This datasheet PDF includes multiple part numbers: DN5566, DN5564.
Please refer to the document for exact specifications by model.
