SN7101P

Voltage and Current Controller

SN7101P Features

* ◈1.24V Series Voltage Reference with 10mA Output Current and 2.5% Precision ◈Two Operational Amplifiers with ORed Output And 1MHz Gain Bandwidth ◈Built-in Current Generator with Enable/Disable Fucntion ◈Wide Range of Supply Voltage [ 4.5V to 32V ] ORDERING INFORMATION Product SN7101 SN7101P Marki

SN7101P General Description

The SN7101 is integrated a high stability band gap voltage reference, two ORed operational amplifiers and a current source. This IC compares the DC voltage and the current level at the output of a switching power supply to an internal reference. It provides a feedback through an Opto-coupler to the .

SN7101P Datasheet (373.73 KB)

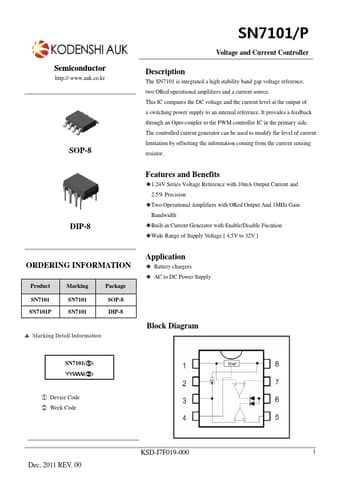

Preview of SN7101P PDF

Datasheet Details

Part number:

SN7101P

Manufacturer:

AUK

File Size:

373.73 KB

Description:

Voltage and current controller.
