SN7002 Datasheet - Siemens Semiconductor Group

SN7002 SIPMOS Small-Signal Transistor

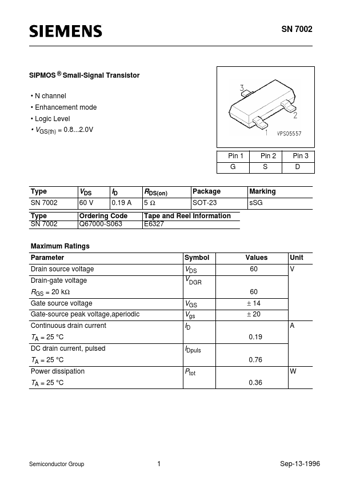

SN 7002 SIPMOS ® Small-Signal Transistor N channel Enhancement mode Logic Level VGS(th) = 0.82.0V Pin 1 G Pin 2 S Pin 3 D Type SN 7002 Type SN 7002 VDS 60 V ID 0.19 A RDS(on) 5Ω Package SOT-23 Marking sSG Ordering Code Q67000-S063 Tape and Reel Information E6327 Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values 60 60 Unit V VDS VDGR VGS Vgs ID RGS = 20 kΩ Gate source voltage Gate-source peak voltage,aperiodic C.

SN7002_SiemensSemiconductorGroup.pdf

Preview of SN7002 PDF
SN7002 Datasheet Preview Page 2 SN7002 Datasheet Preview Page 3

Datasheet Details

Part number:

SN7002

Manufacturer:

Siemens Semiconductor Group

File Size:

134.58 KB

Description:

Sipmos small-signal transistor.
