SRA2211UF - PNP Silicon Transistor

Product Overview

AUK

📥 Download Datasheet

SRA2211UF PNP Silicon Transistor by AUK - Datasheet Preview — Datasheet preview – SRA2211UF

Datasheet Details

Part number	SRA2211UF
Manufacturer	AUK
File Size	189.23 KB
Description	PNP Silicon Transistor
Datasheet	SRA2211UF Datasheet
Additional preview pages of the SRA2211UF datasheet.

Product details

Description

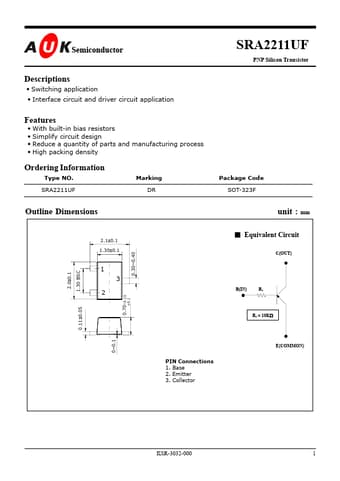

Switching application Interface circuit and driver circuit application

Features

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRA2211UF Marking DR Package Code SOT-323F Outline Dimensions unit :.
Equivalent Circuit 0.30~0.40 C(OUT) mm 2.1±0.1 1.30±0.1 1.30 BSC 2.0±0.1 1 3 0.70-0.15 2 B(IN) +0.1 R1 0.11±0.05 R1 = 10KΩ 0~0.1 E(COMMON) PIN Connections 1. Base 2. Emitter 3. Collector KSR-3032-000 1 SRA2211.
