SRA2211U - PNP Silicon Transistor

Product Overview

AUK

📥 Download Datasheet

SRA2211U PNP Silicon Transistor by AUK - Datasheet Preview — Datasheet preview – SRA2211U

Datasheet Details

Part number	SRA2211U
Manufacturer	AUK
File Size	188.80 KB
Description	PNP Silicon Transistor
Datasheet	SRA2211U Datasheet
Additional preview pages of the SRA2211U datasheet.

Product details

Description

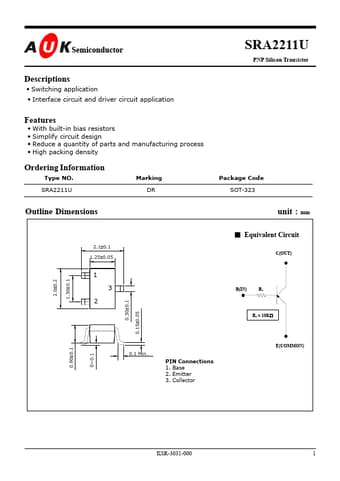

Switching application Interface circuit and driver circuit application

Features

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRA2211U Marking DR Package Code SOT-323 Outline Dimensions unit :.
Equivalent Circuit mm 2.1±0.1 1.25±0.05 C(OUT) 1 1.30±0.1 2.0±0.2 3 0.30±0.1 B(IN) R1 2 0.15±0.05 R1 = 10KΩ 0.90±0.1 E(COMMON) 0~0.1 0.1 Min. PIN Connections 1. Base 2. Emitter 3. Collector KSR-3031-000 1 SRA2211.
