SRA2219U - PNP Silicon Transistor

Product Overview

AUK

📥 Download Datasheet

SRA2219U PNP Silicon Transistor by AUK - Datasheet Preview — Datasheet preview – SRA2219U

Datasheet Details

Part number	SRA2219U
Manufacturer	AUK
File Size	51.89 KB
Description	PNP Silicon Transistor
Datasheet	SRA2219U Datasheet

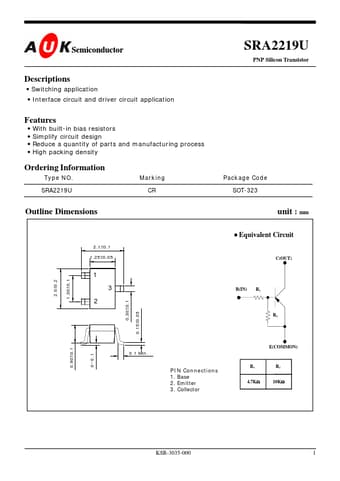

Additional preview pages of the SRA2219U datasheet.

Product details

Description

Switching application Interface circuit and driver circuit application

Features

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRA2219U Marking CR Package Code SOT-323 Outline Dimensions unit : mm.
Equivalent Circuit 2.1±0.1 1.25±0.05 C(OUT) 1 1.30±0.1 2.0±0.2 3 0.30±0.1 B(IN) R1 2 0.15±0.05 R2 0.90±0.1 E(COMMON) 0~0.1 0.1 Min. R1 4.7KΩ R2 10KΩ PIN Connections 1. Base 2. Emitter 3. Collector KSR-3035-00.
