SRA2219 - PNP Silicon Transistor

Product Overview

AUK

📥 Download Datasheet

SRA2219 PNP Silicon Transistor by AUK - Datasheet Preview — Datasheet preview – SRA2219

Datasheet Details

Part number	SRA2219
Manufacturer	AUK
File Size	53.50 KB
Description	PNP Silicon Transistor
Datasheet	SRA2219 Datasheet
Additional preview pages of the SRA2219 datasheet.

Product details

Description

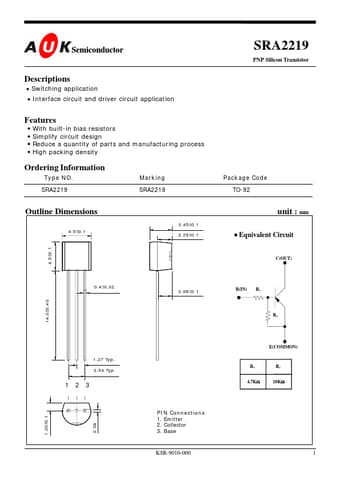

Switching application Interface circuit and driver circuit application

Features

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRA2219 Marking SRA2219 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm.
Equivalent Circuit 4.5±0.1 C(OUT) 0.4±0.02 14.0±0.40 2.06±0.1 B(IN) R1 R2 E(COMMON) 1.27 Typ. 2.54 Typ. R1 4.7KΩ R2 10KΩ 1 2 3 1.20±0.1 PIN Connections 1. Emitter 2. Collector 3. Ba.
