SRA2219SF - PNP Silicon Transistor

Product Overview

AUK

📥 Download Datasheet

SRA2219SF PNP Silicon Transistor by AUK - Datasheet Preview — Datasheet preview – SRA2219SF

Datasheet Details

Part number	SRA2219SF
Manufacturer	AUK
File Size	52.12 KB
Description	PNP Silicon Transistor
Datasheet	SRA2219SF Datasheet
Additional preview pages of the SRA2219SF datasheet.

Product details

Description

Switching application Interface circuit and driver circuit application

Features

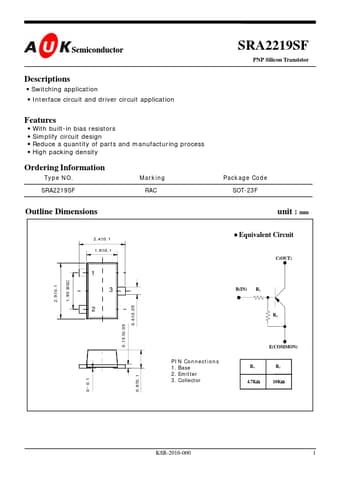

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRA2219SF Marking RAC Package Code SOT-23F Outline Dimensions 2.4±0.1 1.6±0.1 unit : mm.
Equivalent Circuit C(OUT) 1 2.9±0.1 1.90 BSC 3 0.4±0.05 B(IN) R1 2 0.15±0.05 R2 E(COMMON) 0.9±0.1 0~0.1 PIN Connections 1. Base 2. Emitter 3. Collector R1 4.7KΩ R2 10KΩ KSR-2016-000 1 SR.
