SRC1205 - NPN Silicon Transistor

Product Overview

AUK

Part number	SRC1205
Manufacturer	AUK
File Size	58.53 KB
Description	NPN Silicon Transistor
Datasheet	SRC1205 Datasheet

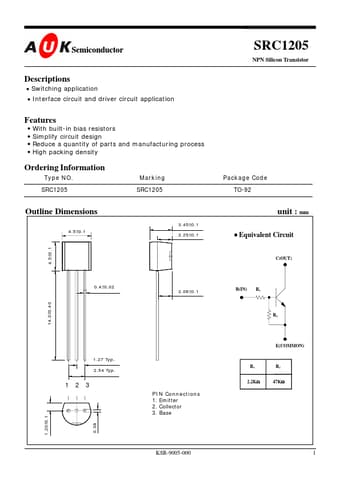

Additional preview pages of the SRC1205 datasheet.

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1205 Marking SRC1205 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm.
Equivalent Circuit 4.5±0.1 C(OUT) 0.4±0.02 2.06±0.1 B(IN) R1 14.0±0.40 R2 E(COMMON) 1.27 Typ. 2.54 Typ. R1 2.2KΩ R2 47KΩ 1 2 3 PIN Connections 1. Emitter 2. Collector 3. Base 0.38 1.
