SRC1212 - NPN Silicon Transistor

Product Overview

AUK

Part number	SRC1212
Manufacturer	AUK
File Size	48.55 KB
Description	NPN Silicon Transistor
Datasheet	SRC1212 Datasheet

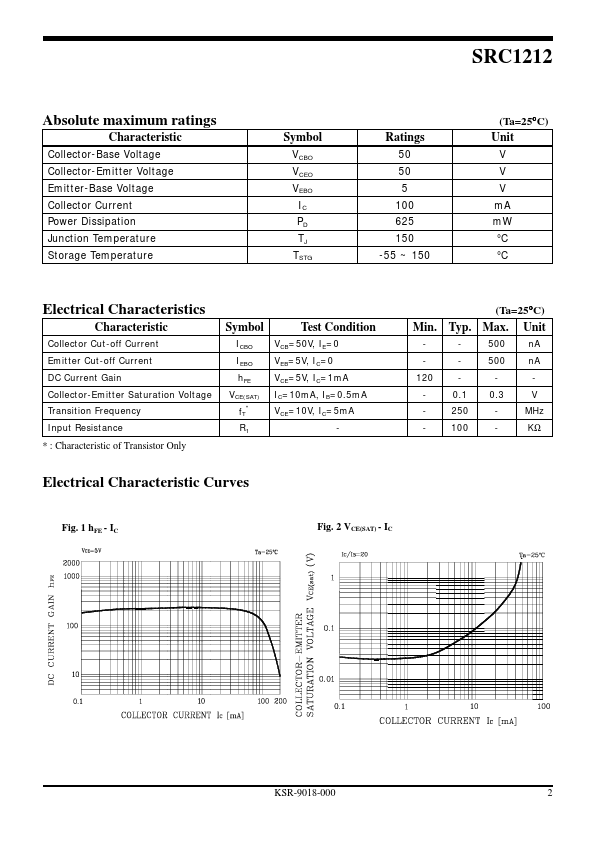

Additional preview pages of the SRC1212 datasheet.

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1212 Marking SRC1212 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm.
Equivalent Circuit C(OUT) 4.5±0.1 0.4±0.02 2.06±0.1 B(IN) R1 R1 = 100KΩ E(COMMON) 1.27 Typ. 2.54 Typ. 1 2 3 PIN Connections 1. Emitter 2. Collector 3. Base 0.38 1.20±0.1 KSR-9018-000.
