SUR481H - NPN/PNP epitaxial planar Silicon Transistor

SUR481H Description

Semiconductor SUR481H NPN/PNP epitaxial planar Silicon Transistor .
Digital transistor Features. Both SRC1210 chip and SRA2210 chip in SOT-353 package Ordering Information Type NO.

SUR481H Features

* Both SRC1210 chip and SRA2210 chip in SOT-353 package Ordering Information Type NO. SUR481H Marking X4 Package Code SOT-353 Outline Dimensions unit : mm 2.1 BSC 1.25 BSC 3 2 R1 1 1 2 0.15~0.30 5 1.30 BSC 2.0 BSC Tr2 Tr1 R1 3 4 4 5 R1 Tr1 Tr2 4.7KΩ 4.7KΩ 0.25 Min. PIN Connect

📥 Download Datasheet

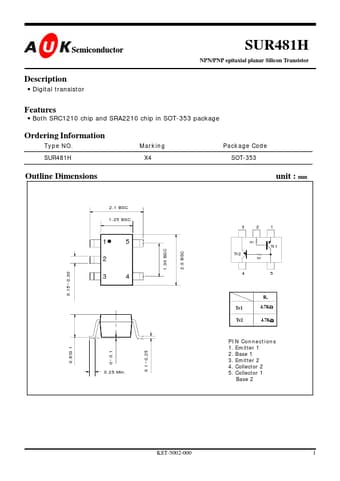

Preview of SUR481H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUR481H
Manufacturer
AUK
File Size
69.60 KB
Datasheet
SUR481H_AUK.pdf
Description
NPN/PNP epitaxial planar Silicon Transistor
