ACPL-C797 Optically Isolated Sigma-Delta Modulator

ACPL-C797 Description

ACPL-C797 Optically Isolated Sigma-Delta Modulator Data Sheet .
The ACPL-C797 is a 1-bit, second-order sigma-delta (Σ-∆) modulator converts an analog input signal into a highspeed data stream with galvanic isolatio.

ACPL-C797 Applications

* such as motor phase current measurement. The analog input is continuously sampled by a means of sigma-delta over-sampling using an on-board clock. The signal information is contained in the modulator data, as a density of ones with data rate of 10 MHz, and the data are encoded and transmitted across

📥 Download Datasheet

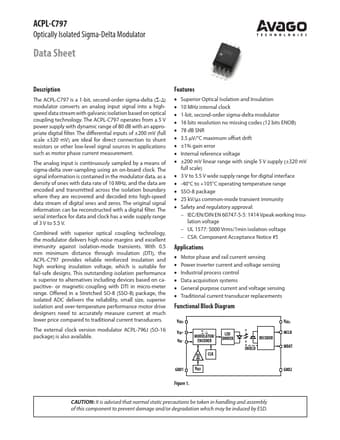

Preview of ACPL-C797 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACPL-C797
Manufacturer
AVAGO
File Size
229.30 KB
Datasheet
ACPL-C797-AVAGO.pdf
Description
Optically Isolated Sigma-Delta Modulator
