ACPL-C740 Optically Isolated Sigma-Delta Modulator

ACPL-C740 Description

ACPL-C740 Optically Isolated Sigma-Delta Modulator Data Sheet .
The Broadcom® ACPL-C740 is a 1-bit, second-order sigmadelta (-) modulator that converts an analog input signal into a high-speed data stream with ga.

ACPL-C740 Features

* Superior optical isolation and insulation
* 20-MHz internal clock
* 1-bit, second-order sigma-delta modulator
* 16 bits resolution no missing codes (12 bits ENOB)
* 86 dB SNR
* 1 µV/°C maximum offset drift
* ±1% gain error
* Internal reference voltage
* ±200-mV

ACPL-C740 Applications

* such as motor phase current measurement. The analog input is continuously sampled by a means of sigma-delta over-sampling using an onboard clock. The signal information is contained in the modulator data, as a density of ones with data rate of 20 MHz, and the data are encoded and transmitted across

📥 Download Datasheet

Preview of ACPL-C740 PDF

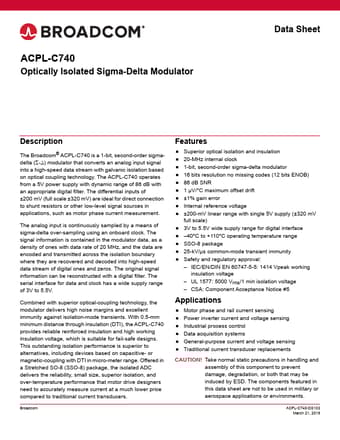

datasheet Preview Page 2 datasheet Preview Page 3
