ADNS-3000, Low Power Optical Mouse Sensor

ADNS-3000 Low Power Optical Mouse Sensor Data Sheet .
The Avago Technologies ADNS-3000 is a low power, small form factor optical mouse sensor.

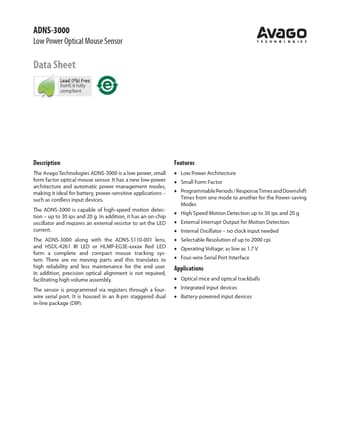

datasheet Preview Page 1 from Datasheet4u.com

ADNS-3000-AVAGO.pdf

ADNS-3000 Datasheet Preview — Preview of ADNS-3000 PDF

Datasheet Details

Part number:

ADNS-3000

Manufacturer:

AVAGO

File Size:

302.41 KB

Description:

Low Power Optical Mouse Sensor

Features

* Low Power Architecture
* Small Form Factor
* Programmable Periods / ResponseTimes and Downshift Times from one mode to another for the Power-saving Modes
* High Speed Motion Detection up to 30 ips and 20 g
* External Interrupt Output for Motion Detection
* Internal Oscillat

Applications

* such as cordless input devices. The ADNS-3000 is capable of high-speed motion detection
* up to 30 ips and 20 g. In addition, it has an on-chip oscillator and requires an external resistor to set the LED current. The ADNS-3000 along with the ADNS-5110-001 lens, and HSDL-4261 IR LED
