ADNS-5095 - Low Power Optical Mouse Sensor

AVAGO

📥 Download Datasheet

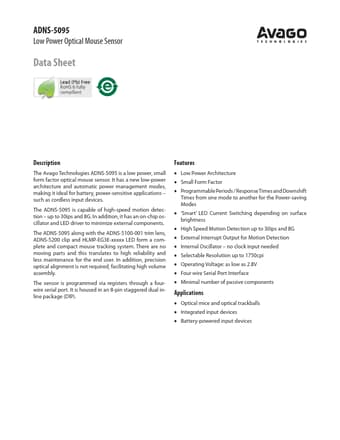

ADNS-5095 Datasheet Preview — Preview of ADNS-5095 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ADNS-5095
Manufacturer: AVAGO
File Size: 266.04 KB
Datasheet: ADNS-5095-AVAGO.pdf
Description: Low Power Optical Mouse Sensor

ADNS-5095 Product details

Description

The Avago Technologies ADNS-5095 is a low power, small form factor optical mouse sensor.. such as cordless input devices.. up to 30ips and 8G..

Features

Low Power Architecture.
Small Form Factor.
Programmable Periods / ResponseTimes and Downshift Times from one mode to another for the Power-saving Modes.
’Smart’ LED Current Switching depending on surface brightness.
High Speed Motion Detection up to 30ips and 8G.
External Interrupt Output for Motion Detection.
Internal Oscillator.
no clock input needed.
Selectable Resolution up to 1750cpi.
Operating Voltage: as low as 2.8V.
Four wire Se.
