ADNS-6000

Laser Mouse Sensor

ADNS-6000 Features

* High speed motion detection

* up to 20 ips and 8g

* New LaserStream architecture for greatly improved optical navigation technology

* Programmable frame rate over 6400 frames per sec- ond

* SmartSpeed self-adjusting frame rate for optimum performance

ADNS-6000 General Description

The Avago Technologies ADNS-6000 sensor along with the ADNS-6120 or ADNS-6130-001 lens, ADNS-6230-001 clip and ADNV-6340 laser diode form a complete and compact laser mouse tracking system. It is world’s first laser-illuminated laser mouse navigation systems for corded applications. Enabled with Ava.

ADNS-6000 Datasheet (752.90 KB)

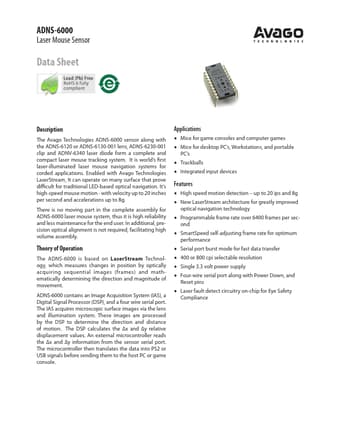

Preview of ADNS-6000 PDF

Datasheet Details

Part number:

ADNS-6000

Manufacturer:

AVAGO

File Size:

752.90 KB

Description:

Laser mouse sensor.
