ALMD-CB3D

High Brightness SMT Round LED Lamps

ALMD-CB3D General Description

The new Avago ALMD-xx3D LED series has the same or just slightly less luminous intensity than conventional high brightness, through-hole LEDs. The new LED lamps can be assembled using common SMT assembly processes and are compatible with industrial reflow soldering processes. The LEDs are made with .

ALMD-CB3D Datasheet (808.99 KB)

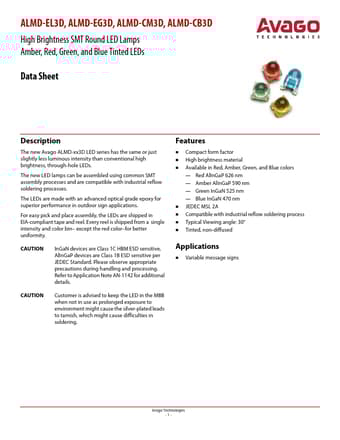

Preview of ALMD-CB3D PDF

Datasheet Details

Part number:

ALMD-CB3D

Manufacturer:

AVAGO

File Size:

808.99 KB

Description:

High brightness smt round led lamps.
