ALMD-CY3G-YZF02, ALMD-CY3G-YZ002 Datasheet - Broadcom

ALMD-CY3G-YZF02 High Brightness SMT Round White LED Lamp

Viewing angle Lens appearance Minimum intensity bin Maximum intensity bin Color bin x6x7 Packaging option Part Number Example ALMD-CY3G-YZ002 x1 : 3 x2 : G x3 : Y x4 : Z x5 : 0 x6 x7: 02 * 33° * Diffused * Minimum intensity bin Y * Maximum intensity bin Z

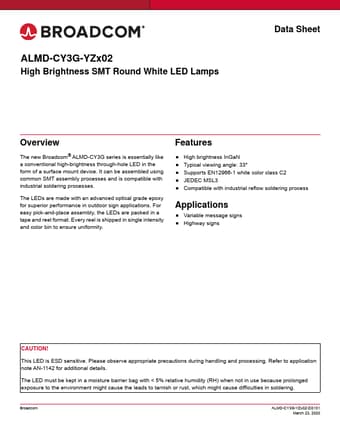

ALMD-CY3G-YZx02 High Brightness SMT Round White LED Lamps Data Sheet Overview The new Broadcom® ALMD-CY3G series is essentially like a conventional high-brightness through-hole LED in the form of a surface mount device. It can be assembled using common SMT assembly processes and is compatible with industrial soldering processes. The LEDs are made with an advanced optical grade epoxy for superior performance in outdoor sign applications. For easy pick-and-place assembly, the LEDs are packed in .

ALMD-CY3G-YZF02 Features

* High brightness InGaN

* Typical viewing angle: 33°

* Supports EN12966-1 white color class C2

* JEDEC MSL3

* Compatible with industrial reflow soldering process Applications

* Variable message signs

* Highway signs CAUTION! This LED is ESD sensitive. Please observe appr

ALMD-CY3G-YZ002-Broadcom.pdf

This datasheet PDF includes multiple part numbers: ALMD-CY3G-YZF02, ALMD-CY3G-YZ002. Please refer to the document for exact specifications by model.
