ALMD-EL1E

Amber LED Lamp

ALMD-EL1E Features

* Using high brightness AlInGaP material

* Available in Red and Amber

* Red

* AlInGaP 621 nm

* Amber

* AlInGaP 590 nm

* Typical viewing angle: 15° and 23°

* JEDEC MSL 3

* Compatible with industrial reflow soldering process

* Tinted Applications

ALMD-EL1E General Description

The Broadcom® ALMD-Ex1E/2E series is essentially like a conventional high brightness through holes LED in the form of surface mount device. It can be assembled using common SMT assembly processes and are compatible with industrial reflow soldering processes. The LEDs are made with an advanced optica.

ALMD-EL1E Datasheet (1.50 MB)

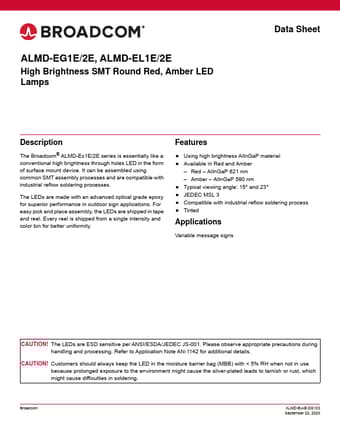

Preview of ALMD-EL1E PDF

Datasheet Details

Part number:

ALMD-EL1E

Manufacturer:

Broadcom

File Size:

1.50 MB

Description:

Amber led lamp.
