ATF-541M4 - Low Noise Enhancement Mode Pseudomorphic HEMT

AVAGO

Datasheet Details

Part number	ATF-541M4
Manufacturer	AVAGO
File Size	161.64 KB
Description	Low Noise Enhancement Mode Pseudomorphic HEMT
Datasheet	ATF-541M4-AVAGO.pdf

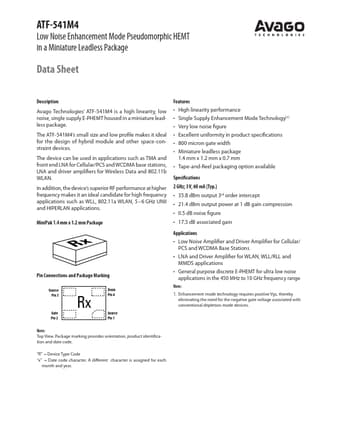

Avago Technologies’ ATF‑541M4 is a high linearity, low noise, single supply E‑PHEMT housed in a miniature lead‑ less package.

High linearity performance.
Single Supply Enhancement Mode Technology[1].
Very low noise figure.
Excellent uniformity in product specifications.
800 micron gate width.
Miniature leadless package 1.4 mm x 1.2 mm x 0.7 mm.
Tape-and-Reel packaging option available Specifications 2 GHz; 3V, 60 mA (Typ. ).
35.8 dBm output 3rd order intercept.
21.4 dBm output power at 1 dB gain compression.
0.5 dB noise.
