ATF-551M4 - Low Noise Enhancement Mode Pseudomorphic HEMT

AVAGO

📥 Download Datasheet

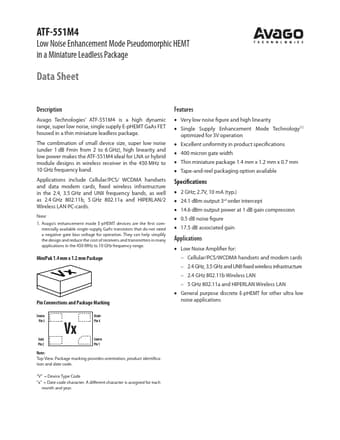

ATF-551M4 Datasheet Preview — Preview of ATF-551M4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ATF-551M4
Manufacturer	AVAGO
File Size	297.78 KB
Description	Low Noise Enhancement Mode Pseudomorphic HEMT
Datasheet	ATF-551M4-AVAGO.pdf

ATF-551M4 Product details

Description

Avago Technologies’ ATF-551M4 is a high dynamic range, super low noise, single supply E‑pHEMT GaAs FET housed in a thin miniature leadless package.

Features

Very low noise figure and high linearity.
Single Supply Enhancement Mode Technology[1] optimized for 3V operation.
Excellent uniformity in product specifications.
400 micron gate width.
Thin miniature package 1.4 mm x 1.2 mm x 0.7 mm.
Tape-and-reel packaging option available Specifications.
2 GHz; 2.7V, 10 mA (typ. ).
24.1 dBm output 3rd order intercept.
14.6 dBm output power at 1 dB gain compression.
