MGA-43013 - High Linearity 728 - 756MHz Power Amplifier Module

MGA-43013 Description

MGA-43013 High Linearity 728 - 756 MHz Power Amplifier Module Data Sheet .
Avago Technologies’ MGA-43013 is a fully matched power amplifier for use in the (728. 756) MHz band.

MGA-43013 Features

* High linearity performance: Typ. -48 dBc ACLR1 [1] at 25 dBm linear output power (biased with 5 V supply)
* High Gain: 33.1 dB
* Good efficiency
* Fully matched
* Built-in detector
* GaAs E-pHEMT Technology [2]
* Low-cost small package

MGA-43013 Applications

* Applications
* Final stage high linearity amplifier for Picocell and Enterprise Femtocell PA targeted for small cell BTS downlink applications. Component Image AVAGO 43013 YYWW XXXX 5.0 × 5.0 × 0.9 mm Package Outline Notes: Package marking provides orientation and identification ”43013”

📥 Download Datasheet

Preview of MGA-43013 PDF

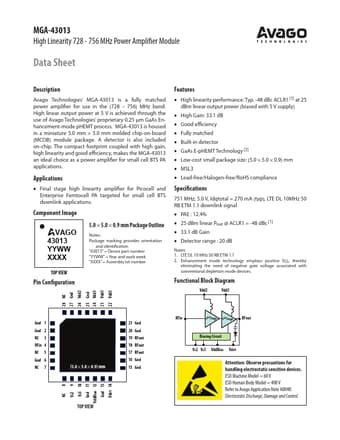

datasheet Preview Page 2 datasheet Preview Page 3
