MGA-43024

2.4GHz WLAN Power Amplifier Module

MGA-43024 Features

* Linear Pout @ EVM =2.5% (802.11n): 27.8 dBm

* Linear Pout with Restricted Band Emission (802.11n) of -48 dBm @ 2412 MHz: 22.2 dBm

* Linear Pout with Restricted Band Emission (802.11n) of -48 dBm @ 2462 MHz: 22.2 dBm

* High gain : 40.5 dB

* Fully matched

MGA-43024 General Description

Avago Technologies’ MGA-43024 is a fully matched power amplifier for use in the WLAN band (2401- 2484 MHz). High linear output power at 5.0 V is achieved through the use of Avago’s proprietary 0.25 µm GaAs Enhancement-mode pHEMT process. MGA-43024 is housed in a miniature 5.0 mm × 5.0 mm molded-chip.

MGA-43024 Datasheet (1.35 MB)

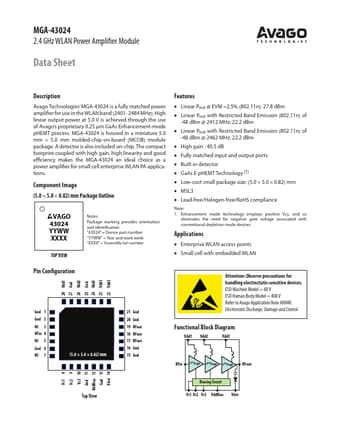

Preview of MGA-43024 PDF

Datasheet Details

Part number:

MGA-43024

Manufacturer:

AVAGO

File Size:

1.35 MB

Description:

2.4ghz wlan power amplifier module.
