MGA-43228

2.3 - 2.5 GHz 29dBm High Linearity Wireless Data Power Amplifier

MGA-43228 Features

*  High gain: 38.5dB

*  High linearity performance: 29.2dBm at 5V supply (2.5% EVM, 64-QAM ¾ FEC rate OFDMA, 10MHz bandwidth)

*  High efficiency: 16.1%

*  Built-in detector and shutdown switches

*  Switchable gain: 23.6dB attenuation using one single CMOS compatible switch pin

MGA-43228 General Description

Avago Technologies’ MGA-43228 is a power amplifier for use in the (2.3-2.5)GHz band. High linear output power at 5V is achieved through the use of Avago Technologies’ proprietary 0.25um GaAs Enhancement-mode pHEMT process. It is housed in a miniature 5.0mm x 5.0mm x 0.85mm 28-lead QFN package. It al.

MGA-43228 Datasheet (414.50 KB)

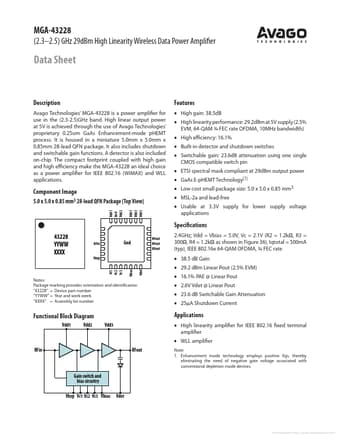

Preview of MGA-43228 PDF

Datasheet Details

Part number:

MGA-43228

Manufacturer:

AVAGO

File Size:

414.50 KB

Description:

2.3 - 2.5 ghz 29dbm high linearity wireless data power amplifier.
