AX1112

1.2V 350mA Low Dropout Linear Regulator

AX1112 Features

* Fixed 1.2V + 2% output voltage Fast transient response Output current limiting Built-in thermal shutdown Good noise rejection Packages: SOT-23-3L  BLOCK DIAGRAM VÛmw`R

* yÑb€ Vin 3 2 Vout w.goftechm + + CURRENT LIMIT + 1.2V + Thermal Shutdown - 1 GND 1/6 Axelite Confidential Materials

AX1112 General Description

AX1112 is a low dropout positive fixed-mode regulator with minimum of 350mA output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AX1112 is also well suite.

AX1112 Datasheet (228.79 KB)

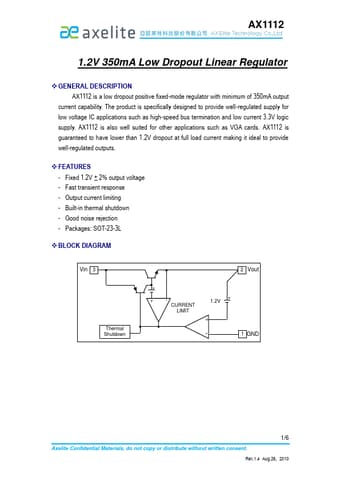

Preview of AX1112 PDF

Datasheet Details

Part number:

AX1112

Manufacturer:

AXElite

File Size:

228.79 KB

Description:

1.2v 350ma low dropout linear regulator.
