AX1113 Datasheet, Regulator, AXElite

AX1113 Features

  • Regulator - 3-Terminal Adjustable or Fixed 1.8V, 3.3, 5.0V - Fast transient response - Output current limiting - Built-in thermal shutdown - Good noise rejection - Packages: SOT89-3L  BLOCK DIAG

PDF File Details

Part number:

AX1113

Manufacturer:

AXElite

File Size:

232.61kb

Download:

📄 Datasheet

Description:

400ma low dropout linear regulator. AX1113 is a low dropout positive adjustable or fixed-mode regulator with minimum of 400mA output current capability. The product is s

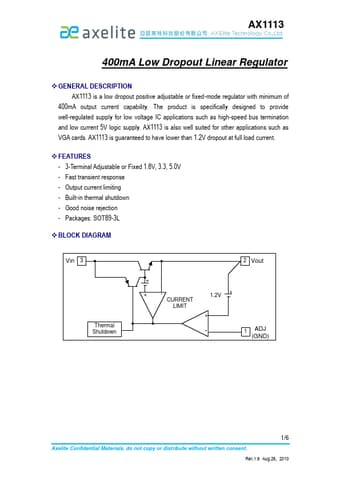

Datasheet Preview: AX1113 📥 Download PDF (232.61kb)
Page 2 of AX1113 Page 3 of AX1113

AX1113 Application

  • Applications such as high-speed bus termination and low current 5V logic supply. AX1113 is also well suited for other applications such as VGA cards
