AX1117

1.2A Low Dropout Positive Voltage Regulator

AX1117 Features

* Low Dropout Voltage 1.2V at 1.2A

* Adjustable or Fixed Voltage (1.8V, 2.5V, 3.3V, 5V)

* Over Current Protection

* Thermal Overload Protection

* Maximum Line Regulation 0.45%

* Maximum Load Regulation 0.4%

* Adjust Pin Current Less Than 90 uA

AX1117 General Description

The AX1117 Series are available in fixed and adjustable output voltage versions. Over current and thermal overload protection are integrated onto the chip. Output current will decrease while it reaches the preset current or temperature limit. The dropout voltage is specified at 1.2V Maximum at full.

AX1117 Datasheet (233.86 KB)

Preview of AX1117 PDF

Datasheet Details

Part number:

AX1117

Manufacturer:

Avantics

File Size:

233.86 KB

Description:

1.2a low dropout positive voltage regulator.

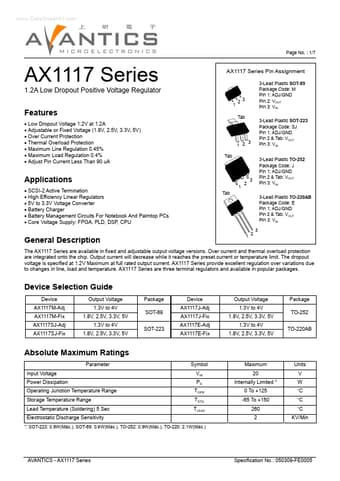

www.DataSheet4U.com Page No. : 1/7 AX1117 Series 1.2A Low Dropout Positive Voltage Regulator AX1117 Series Pin Assignment 3-Lead Plastic SOT-89 Pac.
