AX8101A, AX8101 Datasheet - AXElite

AX8101A Ultra-sensitive Hall Effect Switch

AX8101/A is a three-terminal Hall Effect sensor device with a output driver, mainly designed for battery *operation, hand-held equipment (such as Cellular and Cordless Phone, PDA). After power-on, AX8101/A will detect and setup the operating pole (North or South) to avoid another side magneti.

AX8101A Features

* Micro Power Operation for Battery Applications 2.4V to 5.5V battery operation Chopper Stabilized Technology Operation with North or South Pole High sensitivity and high stability of the magnetic switching points 3-pin SOT-23/Thin SOT-23 Pb-Free packages  BLOCK DIAGRAM VÛmw`R

* yÑb€ VDD w.g

AX8101-AXElite.pdf

This datasheet PDF includes multiple part numbers: AX8101A, AX8101. Please refer to the document for exact specifications by model.

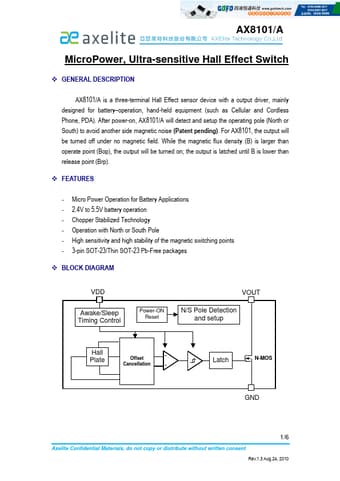

AX8101A Datasheet Preview Page 2 AX8101A Datasheet Preview Page 3

Datasheet Details

Part number:

AX8101A, AX8101

Manufacturer:

AXElite

File Size:

357.27 KB

Description:

Ultra-sensitive hall effect switch.

Note:

This datasheet PDF includes multiple part numbers: AX8101A, AX8101.
Please refer to the document for exact specifications by model.
