AX8112 Datasheet - AXElite

Ultra-sensitive Hall Effect Switch

AX8112 Features

* Micro Power Operation for Battery Applications 1.65V to 3.30V battery operation Chopper Stabilized Technology VÛmw`R

* yÑb€ or South Pole Operation with North Good RF noise immunity High sensitivity and high stability of the magnetic switching points 5-pin Thin TSOT23 w.goftechm Package  BLO

AX8112 General Description

AX8112 is a Hall Effect sensor device with Dual output driver, mainly designed for battery *operation, hand-held equipment (such as Cellular and Cordless Phone, PDA). For AX8112, the total operation power is down to 10uW in the 1.8V supply. Either north or South Pole of sufficient strength wi.

AX8112 Datasheet (370.06 KB)

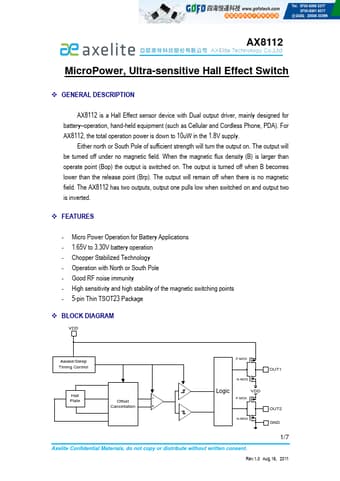

AX8112 Datasheet Preview — Preview of AX8112 PDF

Datasheet Details

Part number:

AX8112

Manufacturer:

AXElite

File Size:

370.06 KB

Description:

Ultra-sensitive hall effect switch.
