AX8113

Ultra-sensitive Hall Effect Switch

AX8113 Features

* Micro Power Operation for Battery Applications VÛmw`R

* yÑb€ operation 1.65V to 3.30V battery Chopper Stabilized Technology Operation with South Pole (OUT1) or North Pole (OUT2) Good RF noisew.goftechm immunity High sensitivity and high stability of the magnetic switching points 5-pin Thin TSO

AX8113 General Description

AX8113 is a Hall Effect sensor device with Dual output driver, mainly designed for battery

*operation, hand-held equipment (such as Cellular and Cordless Phone, PDA). For AX8113, the total operation power is down to 10uW in the 1.8V supply. Either north or South Pole of sufficient strength wi.

AX8113 Datasheet (371.63 KB)

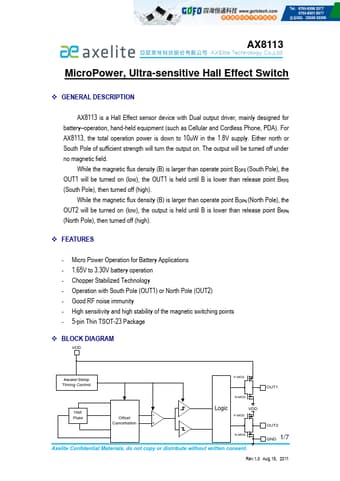

Preview of AX8113 PDF

Datasheet Details

Part number:

AX8113

Manufacturer:

AXElite

File Size:

371.63 KB

Description:

Ultra-sensitive hall effect switch.
