AGM3224B Datasheet (AZ Displays) - LIQUID CRYSTAL DISPLAY

AGM3224B, LIQUID CRYSTAL DISPLAY

Pin NO.

1 2 3 4 Symbol FR CL2 CL1 NC 5 DISPOFF 6 VDD 7 VSS 8 D0 9 D1 10 D2 11 D3 12 VSS 13 Vcon 14 VSS 15 NC 16 EL1 17 NC 18 EL2 Function Description The signal indicate the beginning of each frame Data shift clock pulse Data latch pulse NC Grounding DISPOFF sets liqui

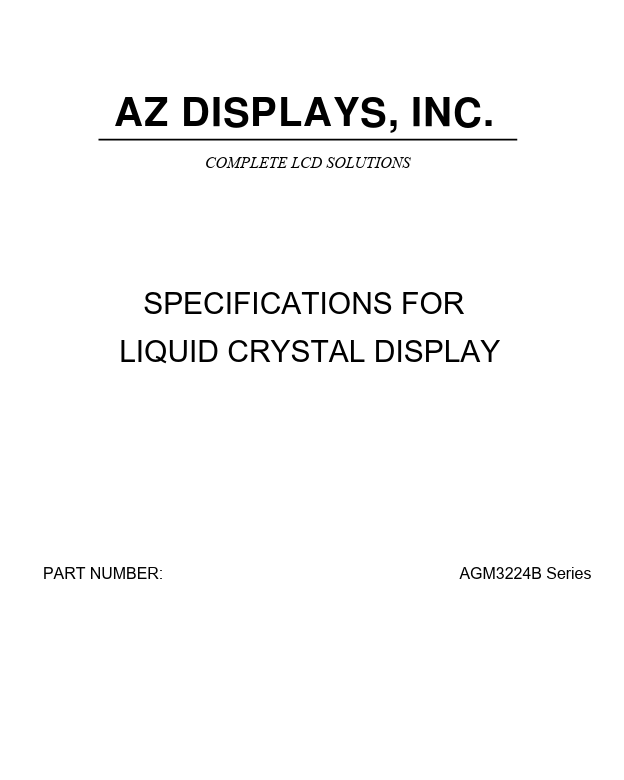

AZ DISPLAYS, INC.

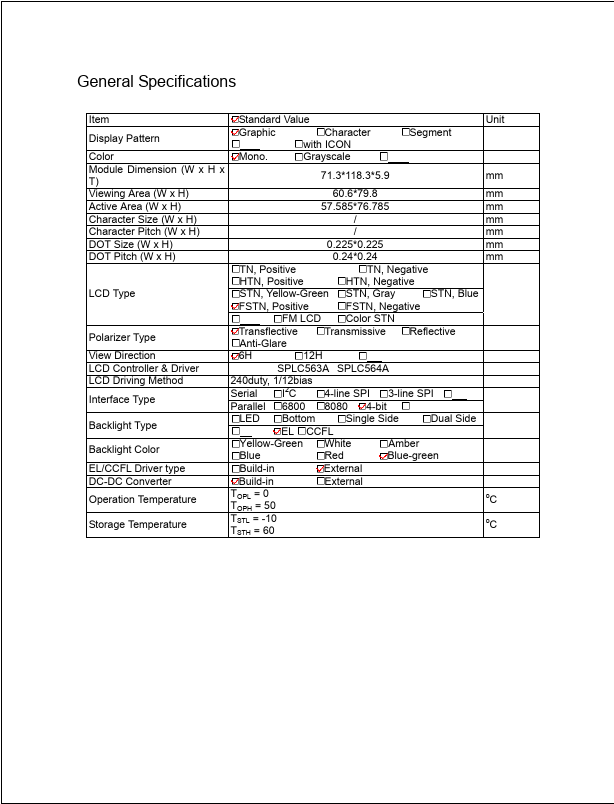

COMPLETE LCD SOLUTIONS SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY PART NUMBER: AGM3224B Series General Specifications Item Standard Value Unit Display Pattern Graphic Character with ICON Segment Color Mono.

Grayscale Module Dimension (W x H x T) 71.3 118.3 5.9 mm Viewing Area (W x H) 60.6 79.8 mm Active Area (W x H) 57.585 76.785 mm Character Size (W x H) / mm Character Pitch (W x H) / mm DOT Size (W x H) 0.225 0.225 mm DOT Pit
