ACT2813 - 5V/2.4A Power Bank Solution

Product Overview

Active-Semi

📥 Download Datasheet

ACT2813 5V/2.4A Power Bank Solution by Active-Semi - Datasheet Preview — Datasheet preview – ACT2813

Datasheet Details

Part number	ACT2813
Manufacturer	Active-Semi
File Size	639.39 KB
Description	5V/2.4A Power Bank Solution
Datasheet	ACT2813 Datasheet
Note	This datasheet PDF includes multiple part numbers: ACT2813, ACT2813-Active. Please refer to the document for exact specifications by model.

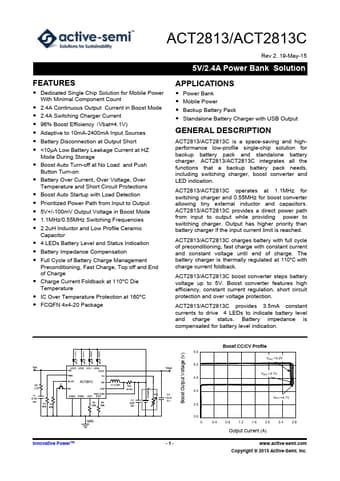

Additional preview pages of the ACT2813 datasheet.

Product details

Description

ACT2813/ACT2813C is a space-saving and highperformance low-profile single-chip solution for backup battery pack and standalone battery charger.

Features

Dedicated Single Chip Solution for Mobile Power With Minimal Component Count.
2.4A Continuous Output Current in Boost Mode.
2.4A Switching Charger Current.
96% Boost Efficiency (Vbat=4.1V).
Adaptive to 10mA-2400mA Input Sources.
Battery Disconnection at Output Short.
