AT25XV021A - SPI Serial Flash Memory

AT25XV021A Description

AT25XV021A 2-Mbit, 1.65V * 4.4V Range SPI Serial Flash Memory with Dual-I/O Support .

AT25XV021A Features

* Single 1.65V - 4.4V Supply
* Serial Peripheral Interface (SPI) Compatible
* Supports SPI Modes 0 and 3
* Supports Dual-I/O Operation
* 70MHz Maximum Operating Frequency
* Clock-to-Output (tV) of 6 ns
* Flexible, Optimized Erase Architecture for Code + Data Storage Appli

AT25XV021A Applications

* Small (256-Byte) Page Erase
* Uniform 4-Kbyte Block Erase
* Uniform 32-Kbyte Block Erase
* Uniform 64-Kbyte Block Erase
* Full Chip Erase
* Hardware Controlled Locking of Protected Sectors via WP Pin
* 128-byte, One-Time Programmable (OTP) Security Register
* 64 byt

📥 Download Datasheet

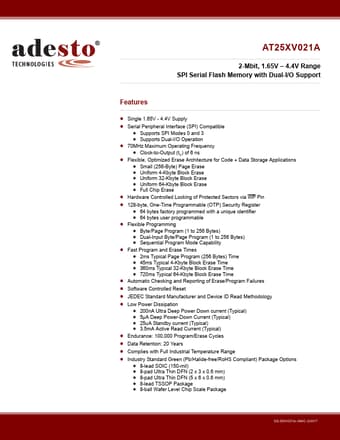

Preview of AT25XV021A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT25XV021A
Manufacturer
Adesto
File Size
2.79 MB
Datasheet
AT25XV021A-Adesto.pdf
Description
SPI Serial Flash Memory
