BL1005-AVR2450T

Multilayer Chip Baluns

BL1005-AVR2450T Features

*  Monolithic SMD with small, low-profile and light-weight type. Applications 2.4 GHz wireless communication systems, including WLAN card, Bluetooth modules, Home RF, etc. Specifications Frequency Part Number Range (MHz) Unbalanced Balanced Impedance Impedance (ohm) (ohm) Insertion Loss (dB)

BL1005-AVR2450T Datasheet (123.02 KB)

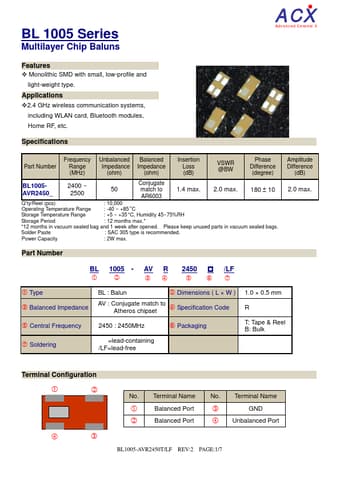

Preview of BL1005-AVR2450T PDF

Datasheet Details

Part number:

BL1005-AVR2450T

Manufacturer:

Advanced Ceramic X

File Size:

123.02 KB

Description:

Multilayer chip baluns.
