ALD500A - PRECISION INTEGRATING ANALOG PROCESSOR

Advanced Linear Devices

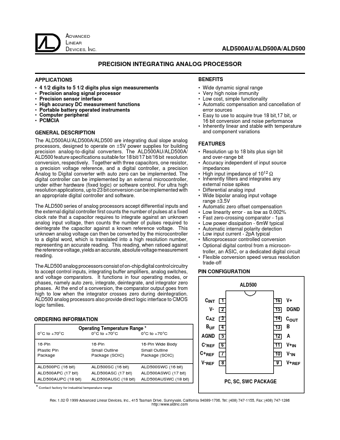

ALD500A Datasheet Preview — Preview of ALD500A PDF

Datasheet Details

Part number	ALD500A
Manufacturer	Advanced Linear ↗ Devices
File Size	88.19 KB
Description	PRECISION INTEGRATING ANALOG PROCESSOR
Datasheet	ALD500A_AdvancedLinearDevices.pdf

ALD500A Product details

Description

The ALD500AU/ALD500A/ALD500 are integrating dual slope analog processors, designed to operate on ± 5V power supplies for building precision analog-to-digital converters.

Features

Resolution up to 18 bits plus sign bit and over-range bit.
Accuracy independent of input source impedances.
High input impedance of 1012 Ω.
Inherently filters and integrates any external noise spikes.
Differential analog input.
Wide bipolar analog input voltage range ±3.5V.
Automatic zero offset compensation.
Low linearity error - as low as 0.002%.
Fast zero-crossing comparator - 1µs.
Low power dissipation.
