ALD500R - PRECISION INTEGRATING ANALOG PROCESSOR

Datasheet Summary

Features

  • Resolution up to 18 bits plus sign bit and over-range bit.
  • Accuracy independent of input source impedances.
  • Accurate on-chip voltage reference.
  • Tempco as low as 10 ppm/°C guaranteed.
  • Chip select - power down mode.
  • High input impedance of 1012 Ω.
  • Inherently filters and integrates any external noise spikes.
  • Differential analog input.
  • Wide bipolar analog input voltage range ±3.5V.
  • Automatic zero offset compen.

📥 Download Datasheet

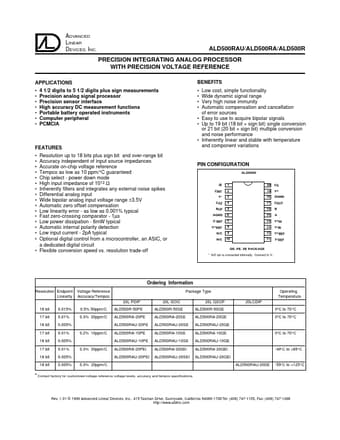

Datasheet preview – ALD500R

Datasheet Details

Part number ALD500R
Manufacturer Advanced Linear Devices
File Size 90.29 KB
Description PRECISION INTEGRATING ANALOG PROCESSOR
Datasheet download datasheet ALD500R Datasheet
Additional preview pages of the ALD500R datasheet.
